Chiller >> Unit Cooler RKS Series
ORION Unit Cooled RKS Series

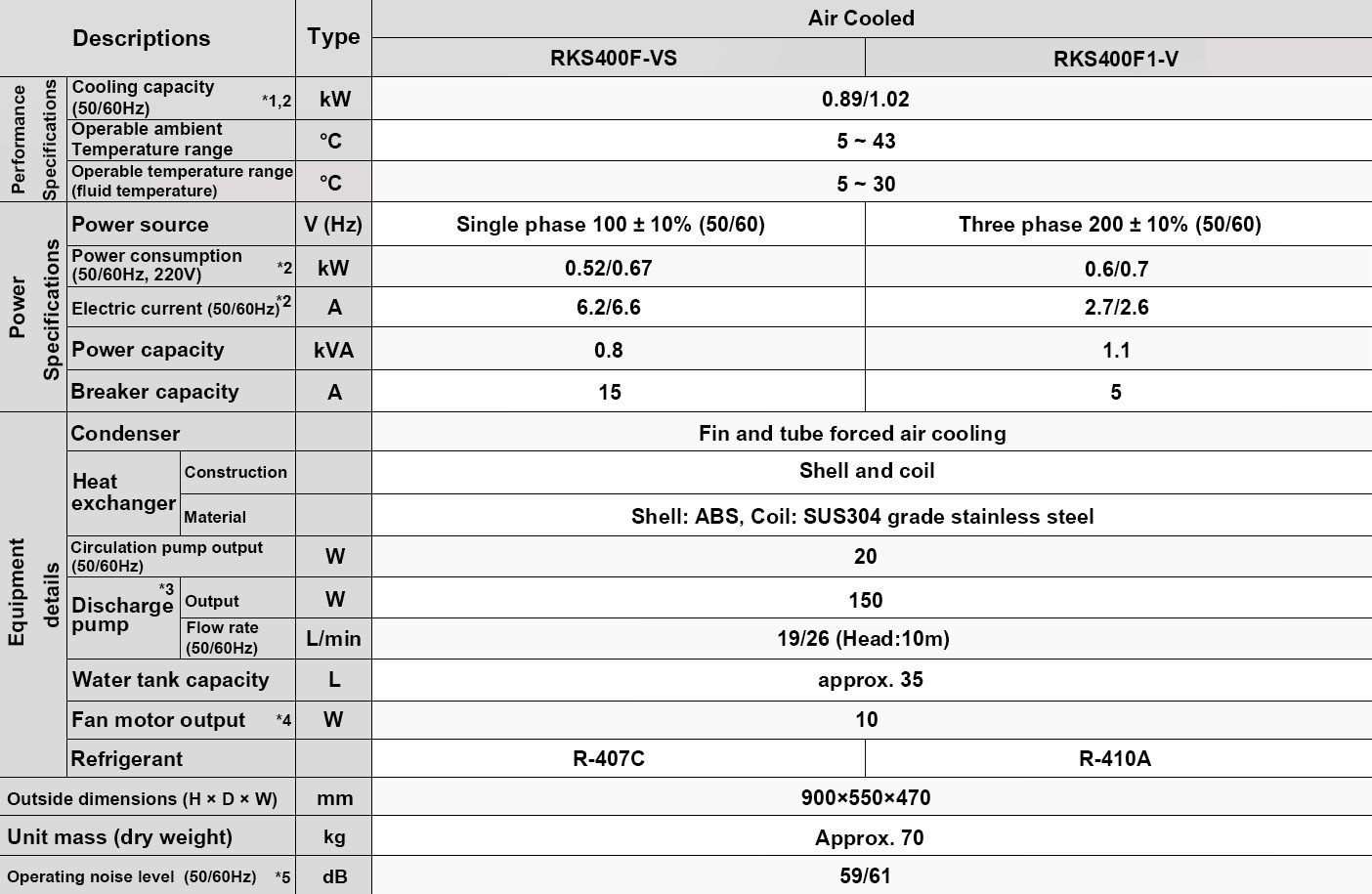

Built-in

Water Tank

Light Duty Chiller

Unit Cooler RKS Series

※1 Cooling capacity is at least 95% of listed figures.

※2 When fluid temperature is 20℃ and ambient temperature is 32℃

※3 The capacity figures listed represent just one point on this model’s flow-rate/head characteristic curve. Pumps differ between models; for model specific details, please refer to the pump characteristic curves.

※4 Fan motor static pressure is 20Pa

※5 Operating noise levels are from a position of 1m in front of the unit and at a height of 1m

Note 1: The chilled fluid can be either potable water or a low concentration ethylene glycol water solution of 10% or less.

Note 2: Heat output of the equipment (in kW) is about 1.3 times the cooling capacity. (air cooled models only)

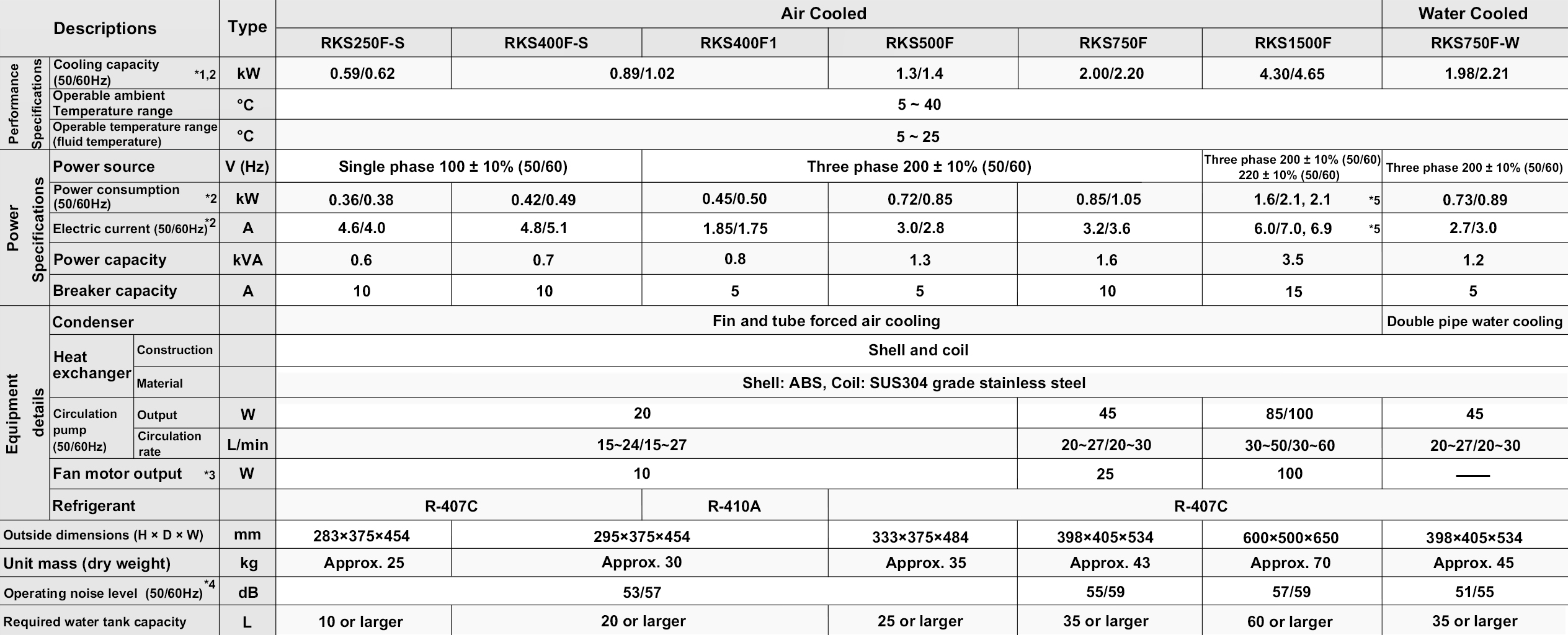

With Out

Water Tank

Light Duty Chiller

Unit Cooler RKS Series

※1 Cooling capacity is at least 95% of listed figures.

※2 When fluid temperature is 20℃ and ambient temperature is 32℃

※3 Fan motor static pressure is 20Pa

※4 Operating noise levels are from a position of 1m in front of the unit and at a height of 1m

※5 At 200V 50/60Hz or 220V 60Hz

Note 1: The chilled fluid can be either potable water or a low concentration ethylene glycol water solution of 10% or less.

Note 2: Heat output of the equipment (in kW) is about 1.3 times the cooling capacity. (air cooled models only)

Note 3: RKS750F-W is a built to order item
