Air Filter >> DSF/LSF/MSF/KSF-AL Series
ORION Air Filter Series

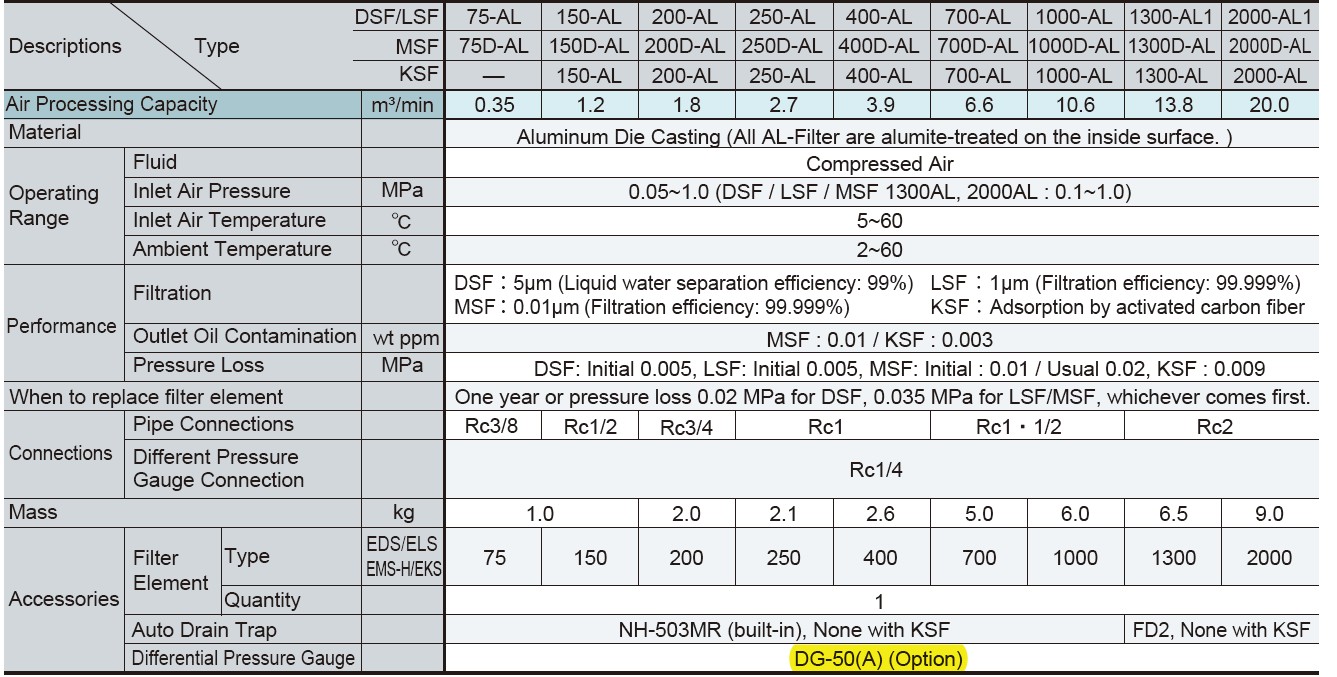

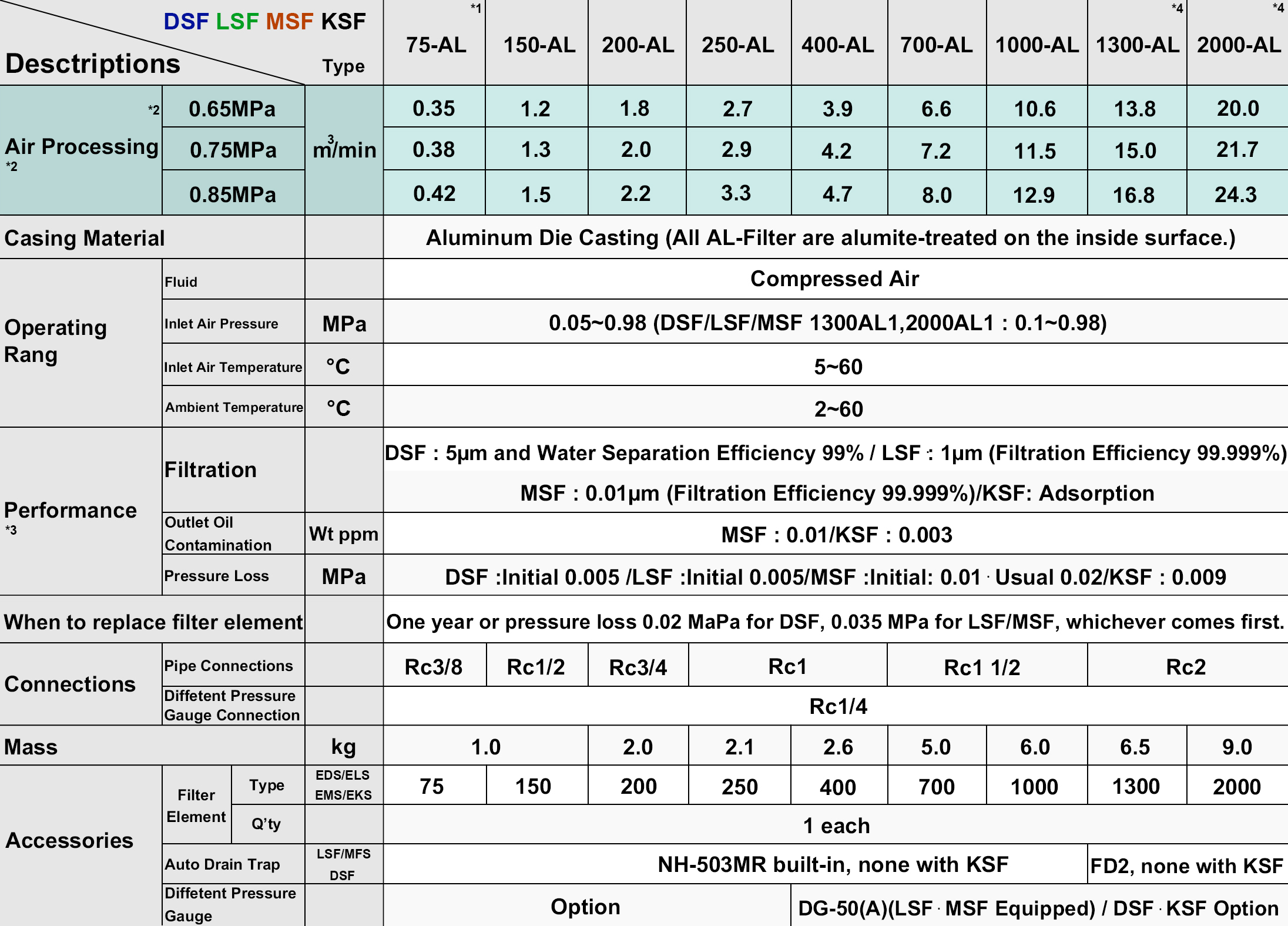

Specifications Clean Air Filter

1 KSF available from 150 to 2000

2 Air Processing Capacity is converted to the suction air condition (atmospheric, 32Υ, 75%RH)

3 All Performances are tested at standard Air Processing Capacity (0.69MPa), Inlet oil contamination 3 wt ppm(LSF/MSF), 0.01wt ppm(KSF)

4 Model name of KSF is “KSF1300-AL” and “KSF2000-AL”

※5 Oil concentration is measured in conformity with ISO8573-2 “Test method of oil concentration”, not including oil-vapor.
