Inverter Controlled Compressed Air Dryer (Refrigerated compressed air drying equipment)

ORION RAXE Series " Inverter Control

Air-Cooled RAXE 2300A ~ 9800A / Water-Cooled RAXE 2300A-W ~ 29600A-W

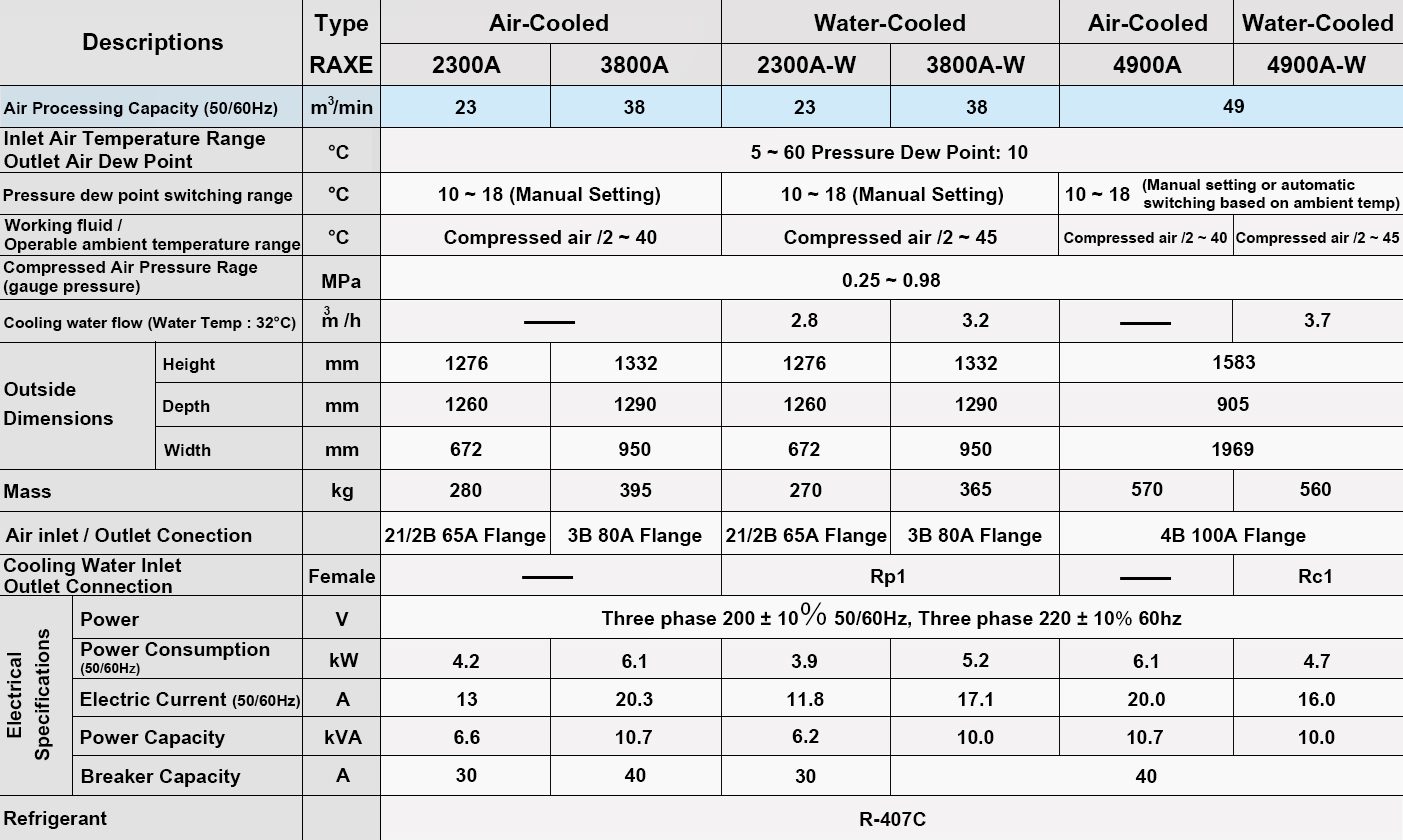

● RAXE2300A ~ 3800A-W
● RAXE4900A-W (Built-to-order models)

※ Air processing conditions: compressed air inlet pressure (gauge pressure): 0.69MPa  inlet air temperature 40℃ outlet air dew point : -17℃ at atmospheric (10℃ under pressure) ambient temperature 32℃ (Cooling water 32℃)

※ Please contact us for the guaranteed performance specifications. Heavy duty models have had performance specifications confirmed with a substitute load (inspection under low pressure air)

※ Air processing capacity is calculated based on air compressor intake condition. (Atmospheric pressure  32℃ and 75%RH) ● Chinese pressure vessel code compliant model available upon request.

※ Please contact ORION regarding custom built models of specifications outside the rages listed above.

※ RAXE4900A ~  4900A-W are subject to JBA 2nd class pressure vessel regulation.

※ Models subject to JBA 2nd class pressure vessel regulation are built to order.

※ Air pressure inlet/outlet connection companion flanges not included.

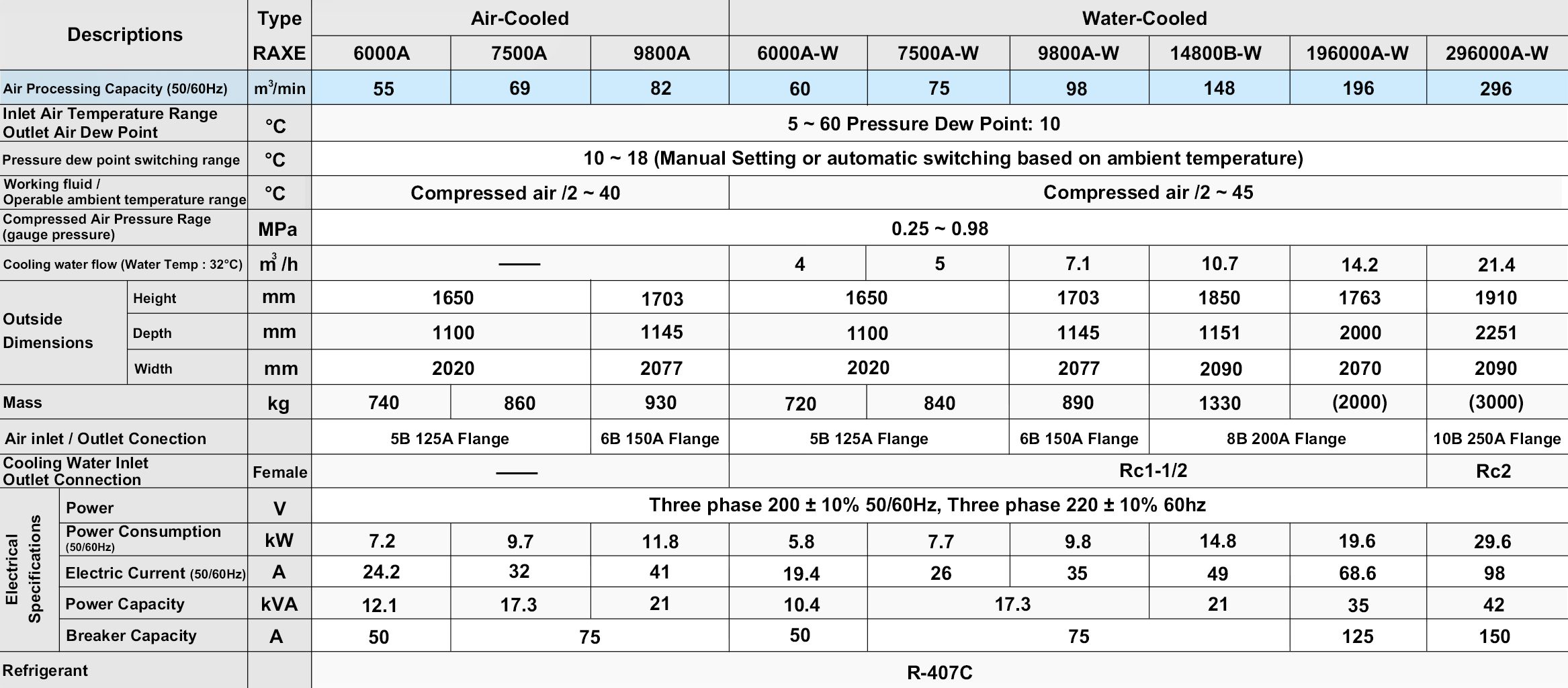

●RAXE6000A~29600A-W (Built-to-order models)

※ Air processing conditions: compressed air inlet pressure (gauge pressure): 0.69MPa inlet air temperature 40℃ outlet air dew point : -17℃ at atmospheric (10℃ under pressure) ambient temperature 32℃ (Cooling water 32℃)

※ Please contact us for the guaranteed performance specifications. Heavy duty models have had performance specifications confirmed with a substitute load (inspection under low pressure air)

※ Air processing capacity is calculated based on air compressor intake condition. (Atmospheric pressure, 32℃ and 75%RH) ● Chinese pressure vessel code compliant model available upon requst.

※ Please contact ORION regarding custom built models of specifications outside the rages listed above.

※ RAXE6000A ~  29600A-W are subject to JBA 2nd class pressure vessel regulation.

※ Models subject to JBA 2nd class pressure vessel regulation are built to order.

※ Air pressure inlet/outlet connection companion flanges not included.
