Specifications Refrigerated Air Dryer

ORION ARX Series (Water Cooled , Air Cooled)

ARX Heavy duty

Specifications

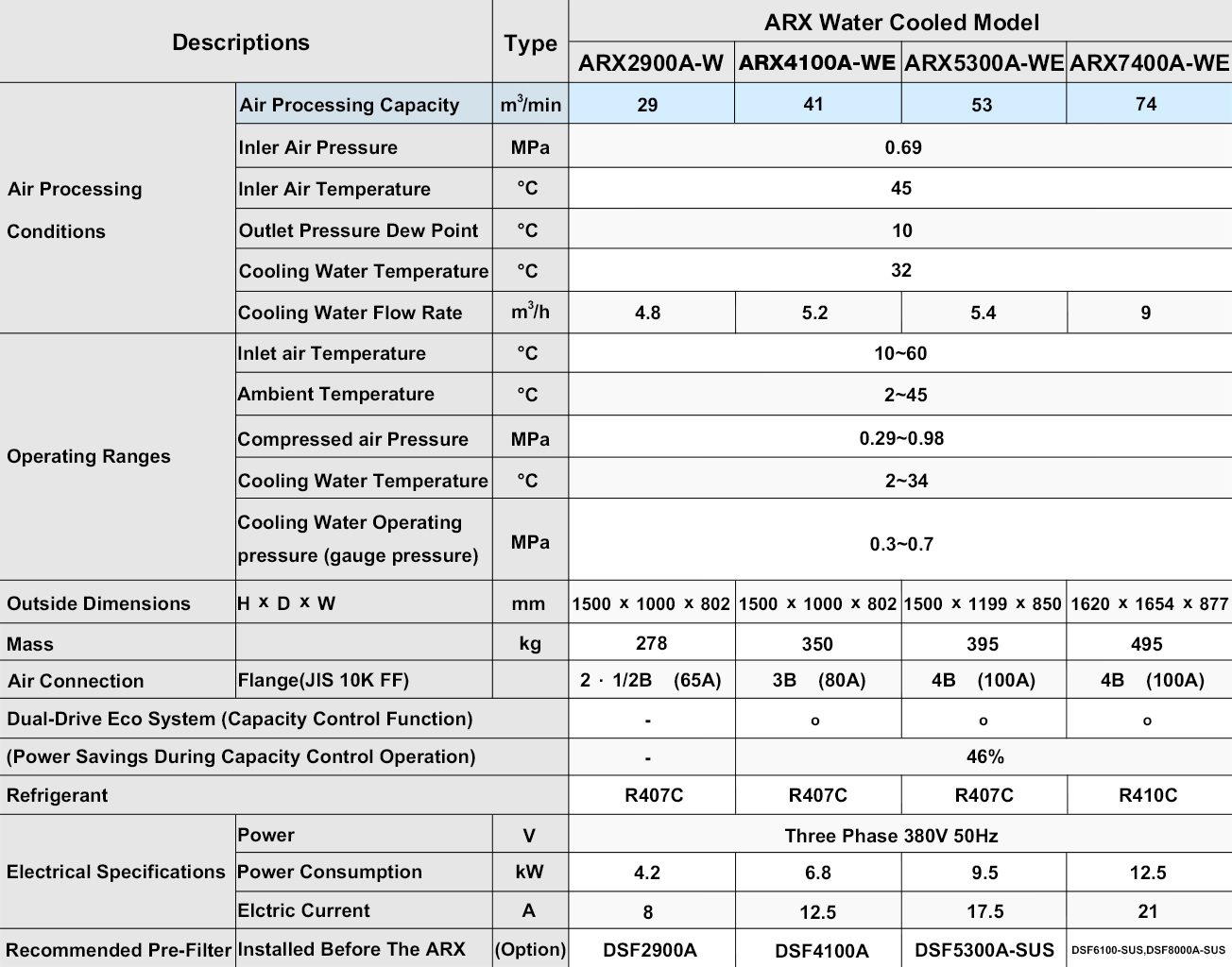

ORION ARX Series Water Cooled

※ Special-order models available with an air pressure specification of 1.0 MPa

※ Air processing capacity figures are based on ANR and adjusted to atmospheric pressure, 32°C, 75% RH

※ Refer to the specifications sheet for further details  ※ Always install a Super Drain Filter (DSF) along the piping before the ARX unit

※ No comparison flanges

Specifications

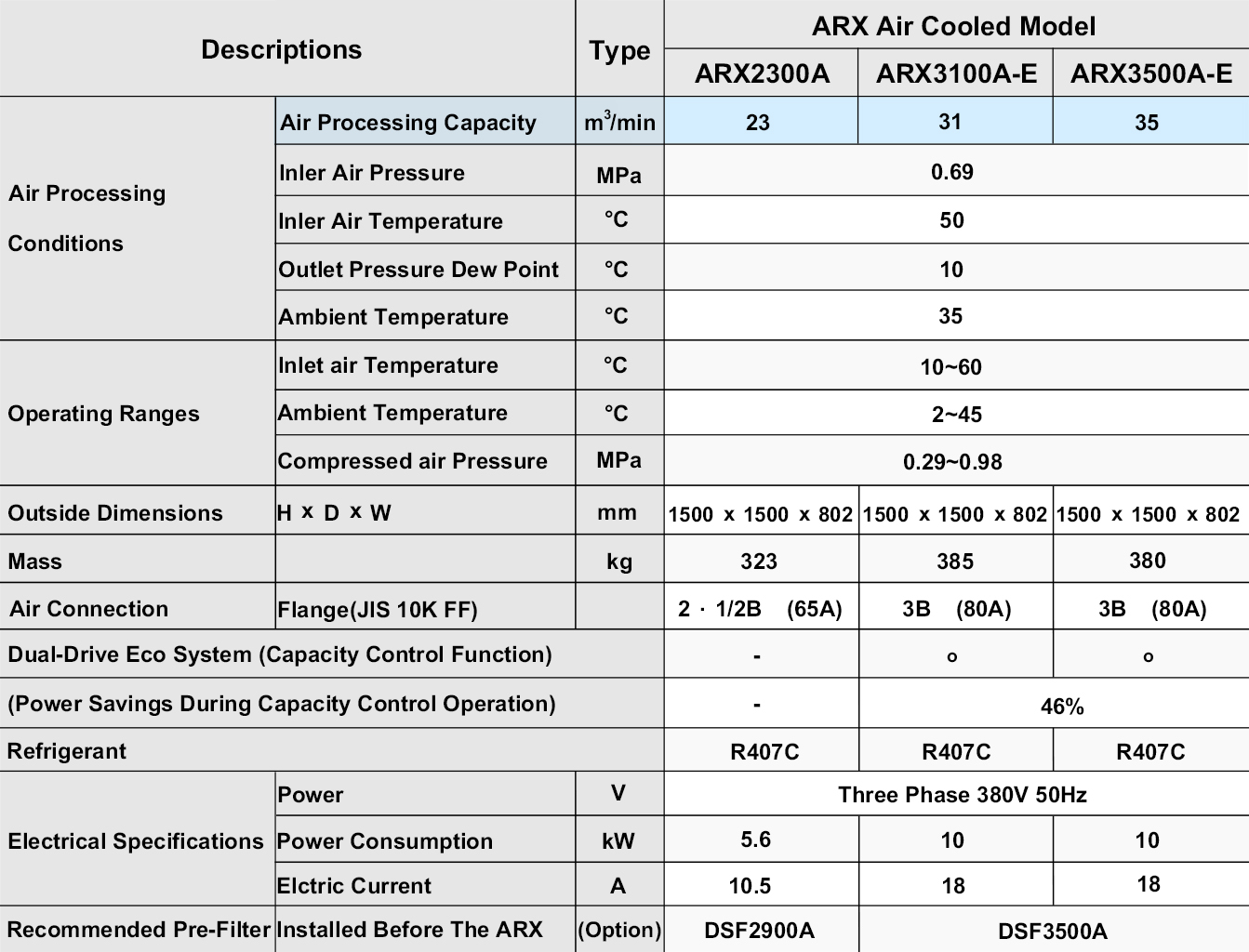

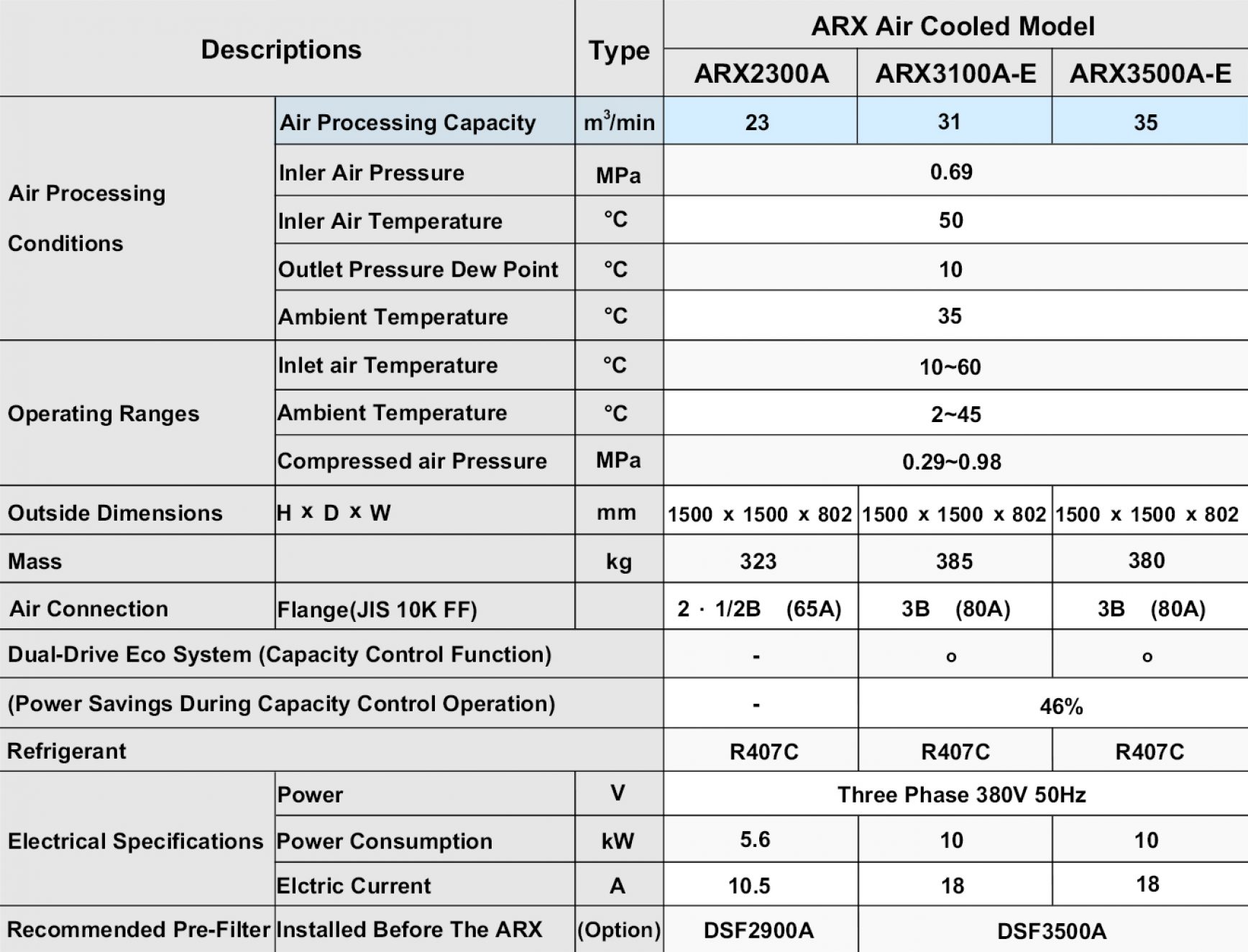

ORION ARX Series Air Cooled

※ Special-order models available with an air pressure specification of 1.0 MPa

※ Air processing capacity figures are based on ANR and adjusted to atmospheric pressure, 32°C, 75% RH

※ Refer to the specifications sheet for further details  ※ Always install a Super Drain Filter (DSF) along the piping before the ARX unit

※ No comparison flanges
