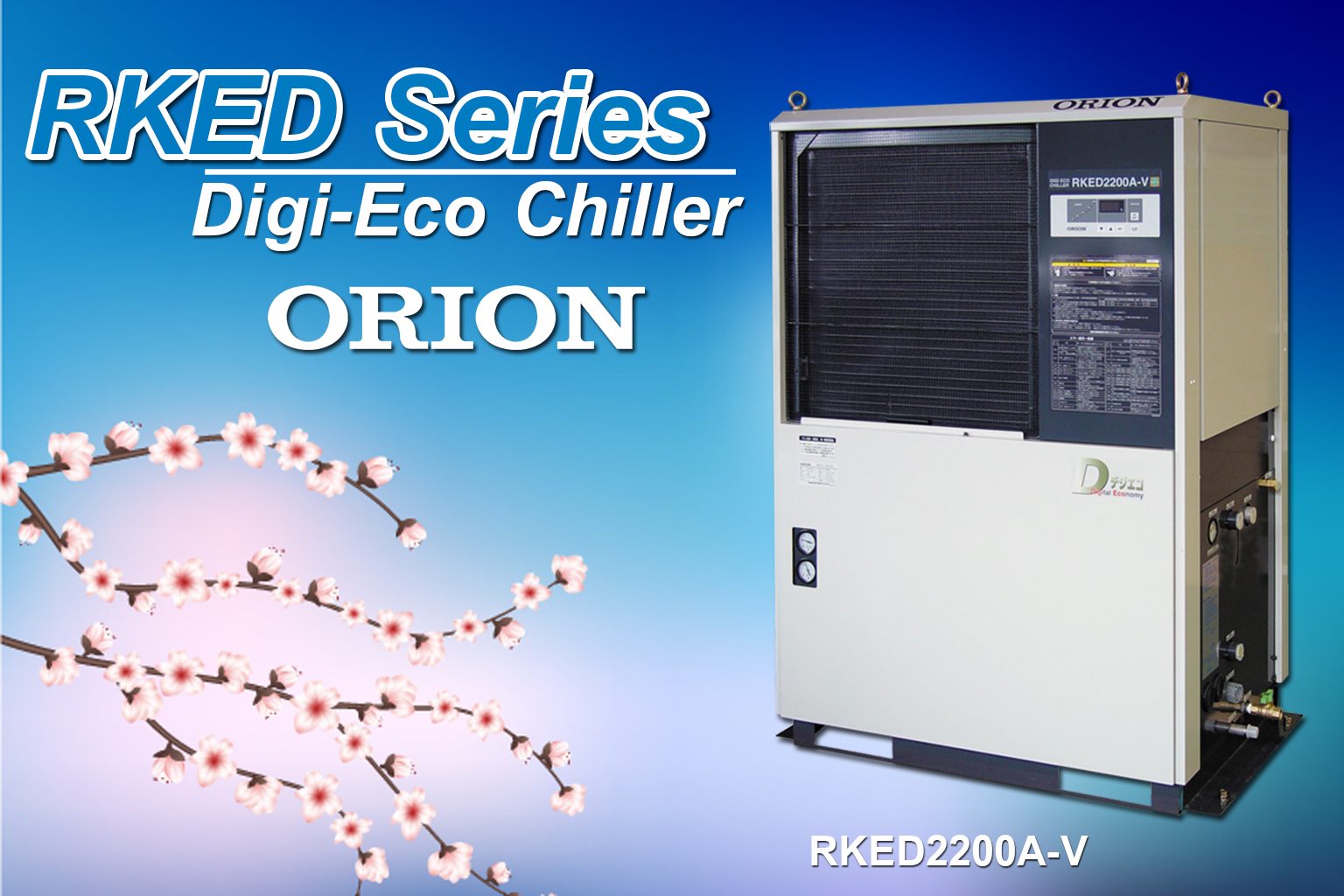

ORION Digi-Eco Chiler RKED Series


Water Tank

Energy-Saving Chiller

Digi-Eco Chiller

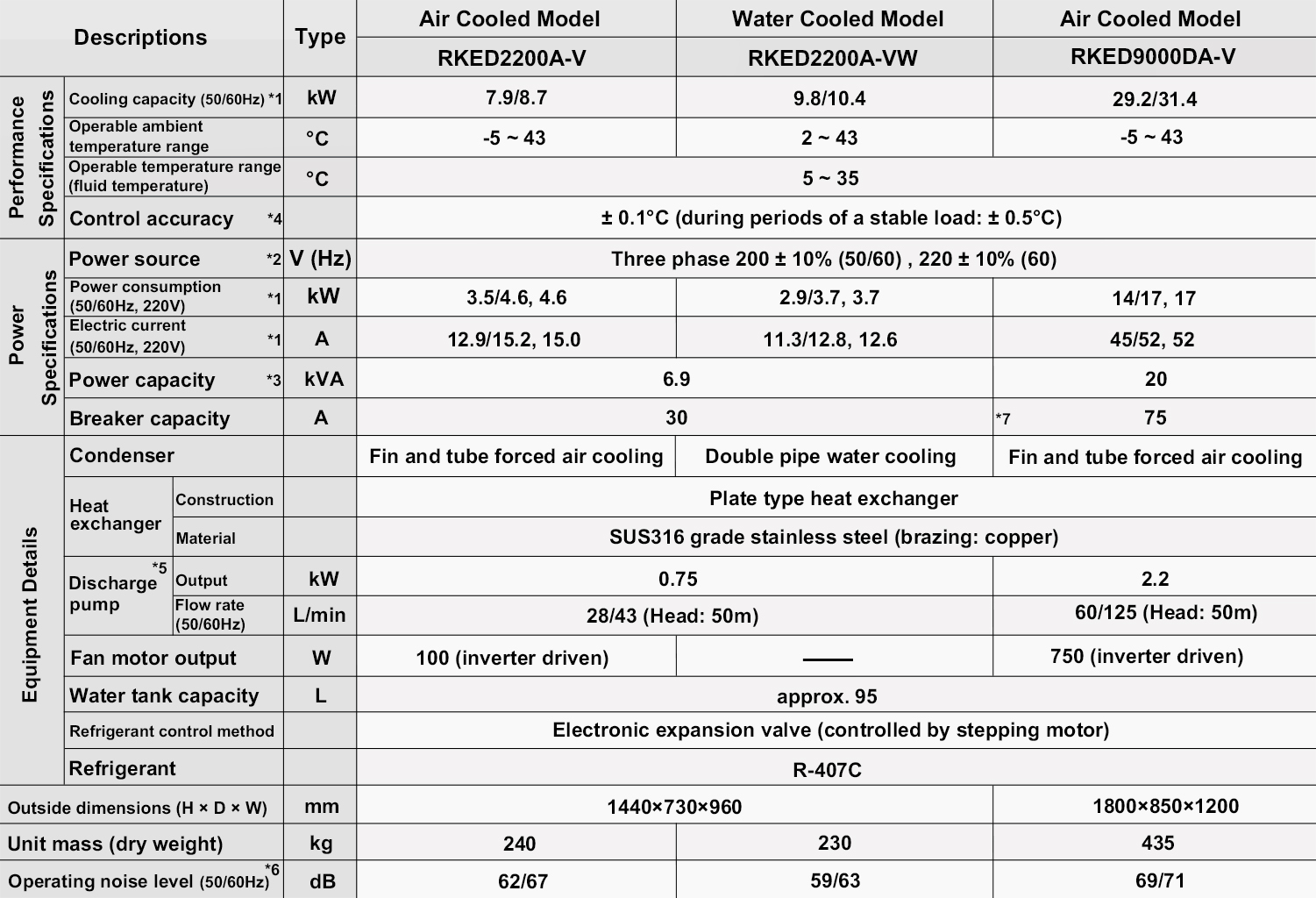

※1 Operation when chilled water temp. is 20℃ and cooling water temp. is 32℃ Cooling capacity is at least 95% of listed figures.

※2 Source voltage phase unbalance should be less than ±3%

※3 The figure noted is when the equipment is operating at the highest capacity of its normal operating range.

※4 Stable load indicates continued operation with maximum load fluctuations of ± 10% of the current load.

※5 The capacity figures listed represent just one point on this model’s flow-rate/head characteristic curve. Pumps differ between models; for model specific details, please refer to the pump characteristic curves.

※6 Operating noise levels are from a position of 1m in front of the unit and at a height of 1m

※7 Unit comes with a built-in multi-purpose overload and short circuit protection breaker.

Note 1: The chilled fluid can be either potable water or a low concentration ethylene glycerol water solution of 10% or less.

Note 2: Please install the included strainer (40 mesh) to the fluid intake port.

Note 3: Heat output of the equipment (in kW) is about 1.3 times the cooling capacity. (air cooled models only)
