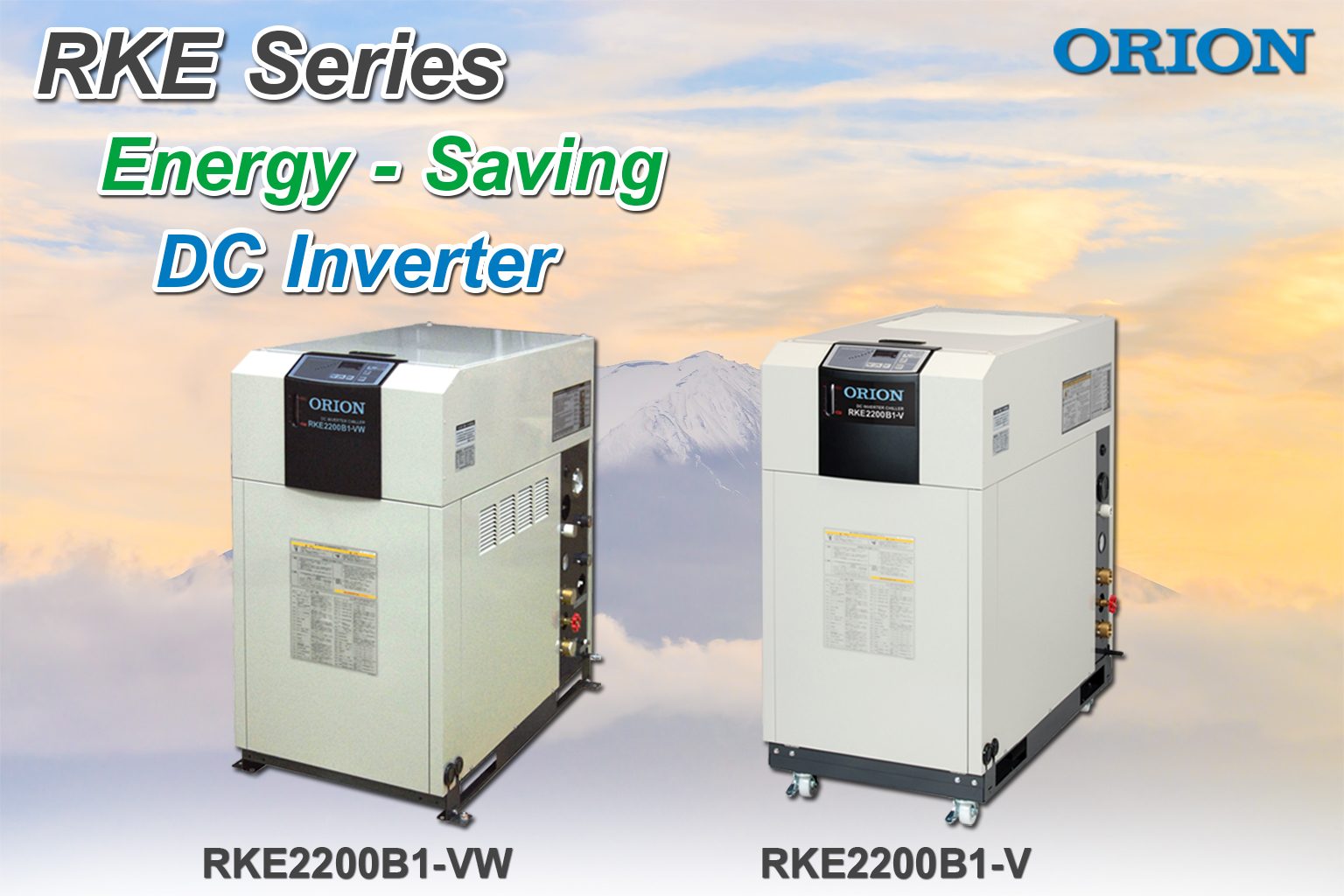

ORION DC Inverter Chiller RKE Series

Built-in

Water Tank

Energy-Saving Chiller

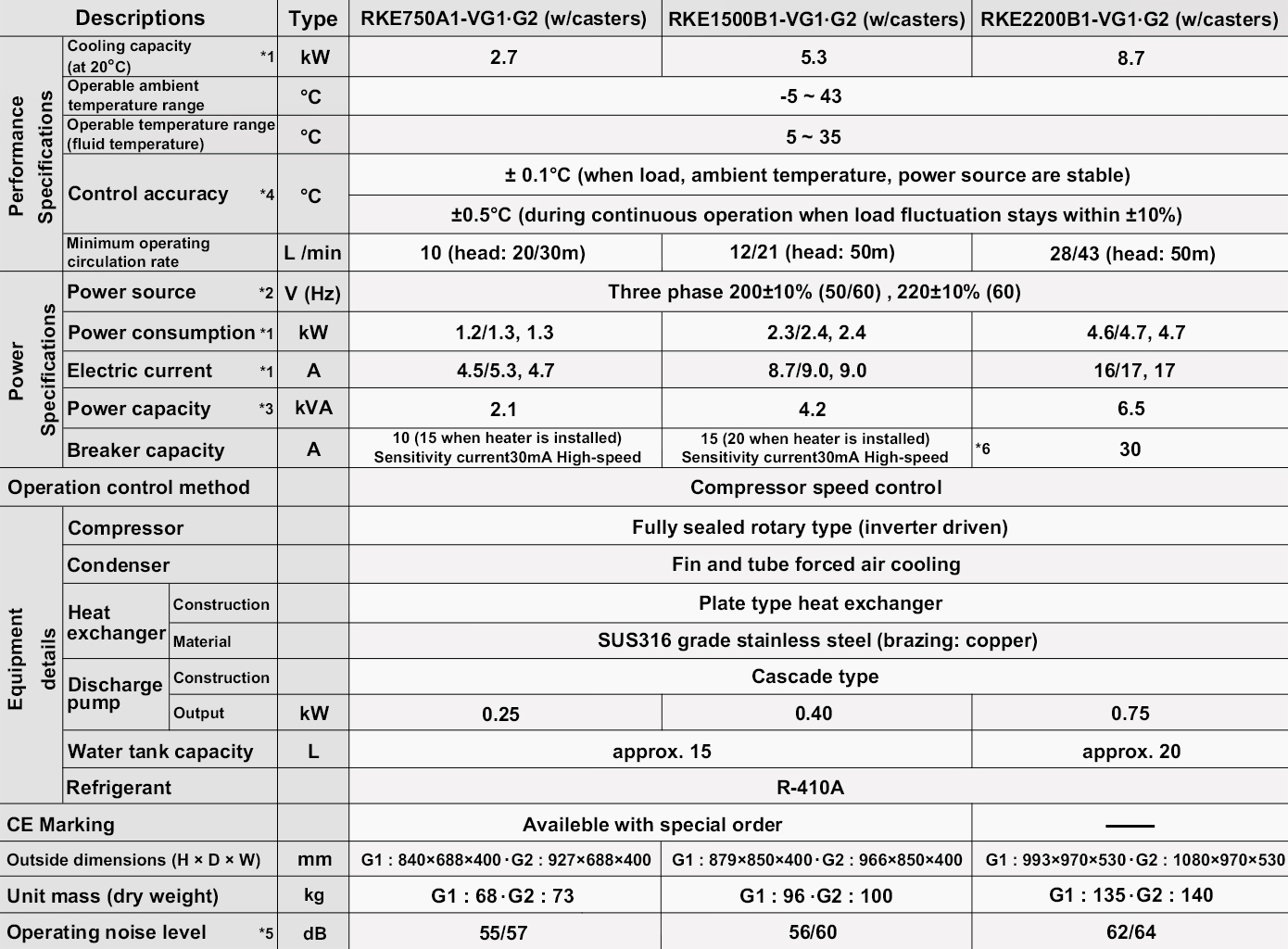

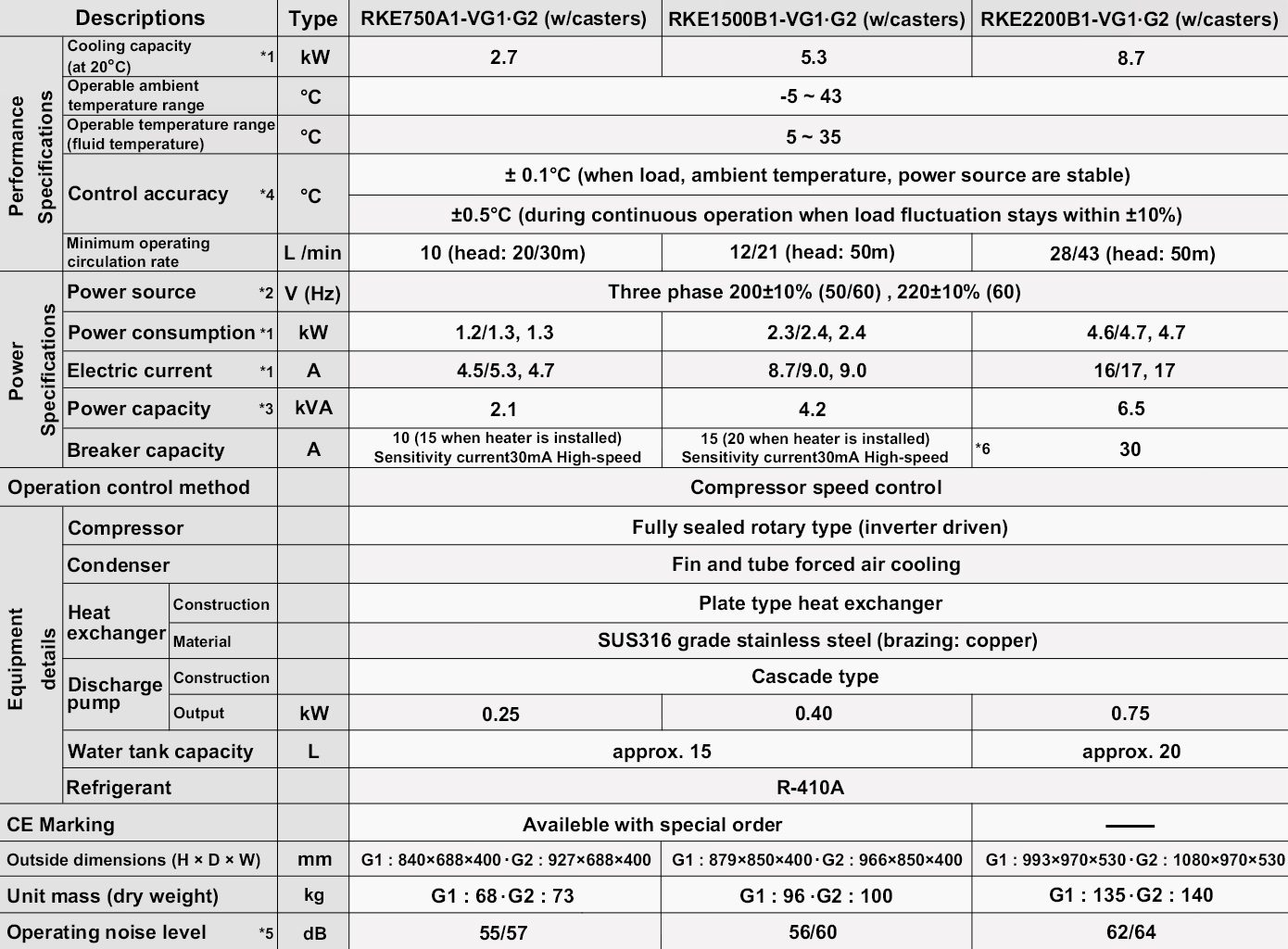

Dc Inverter Chiller-Air Cooled Series

※1 During operation when the fluid temperature is 20℃ and the ambient temperature is 32℃  Cooling capacity will be at least 95% of the noted figures.

※2 Source voltage phase unbalance should be less than ± 3%

※3 The figure noted is when the equipment is operating at the highest capacity of its normal operating range.

※4 Except when the cooling load is too small, in which case the compressor may cycle on and off

※5 Operating noise levels are from a position of 1m in front of the unit and at a height of 1m

※6 Unit comes with a built-in multi-purpose overload and short circuit protection breaker.

Note 1: The chilled fluid can be either potable water or a low concentration ethylene glycol water solution of 10% or less.

Note 2: Heat output of the equipment (in kW) is about 1.3 times the cooling capacity.

Built-in

Water Tank

Energy-Saving Chiller

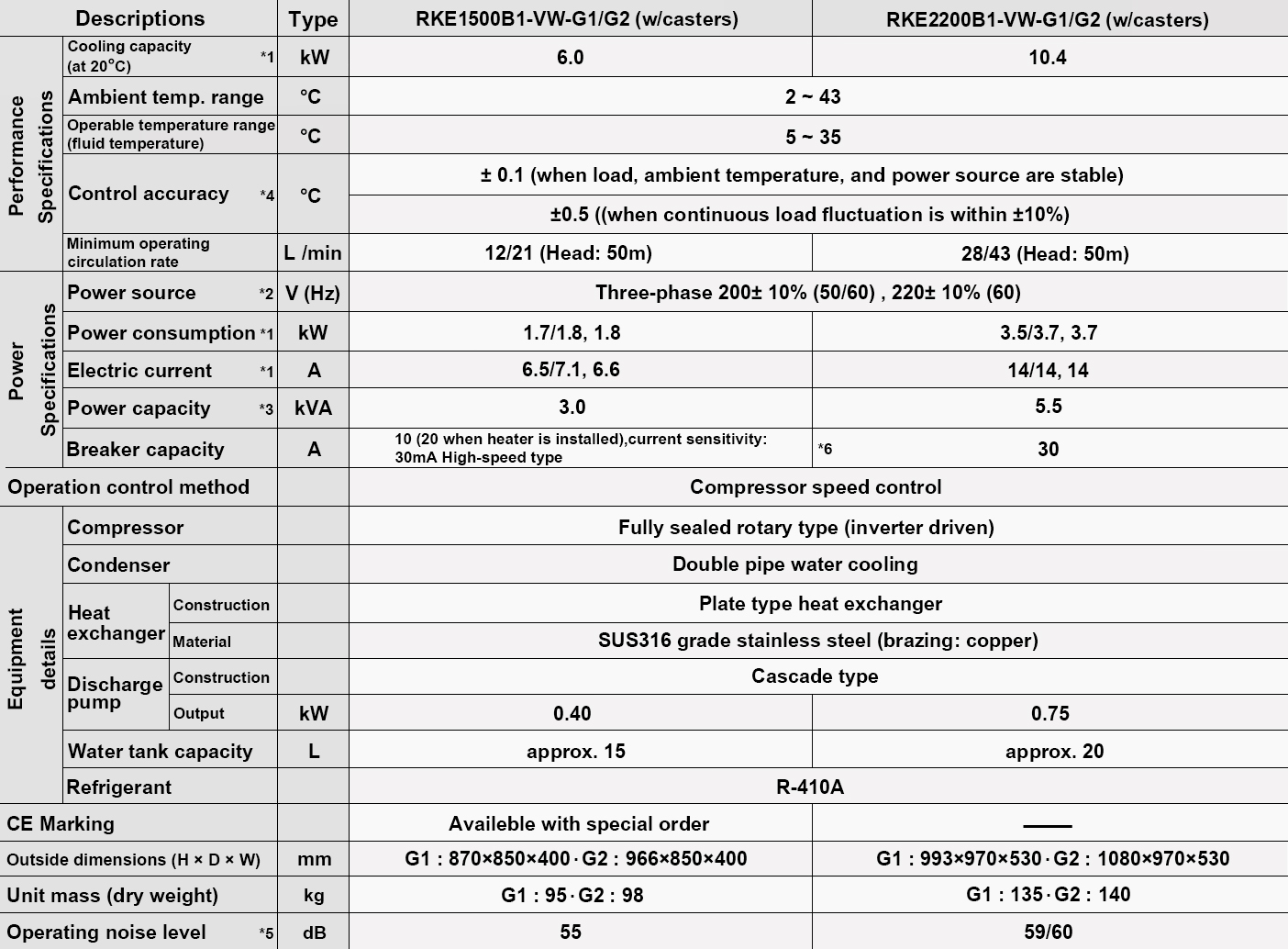

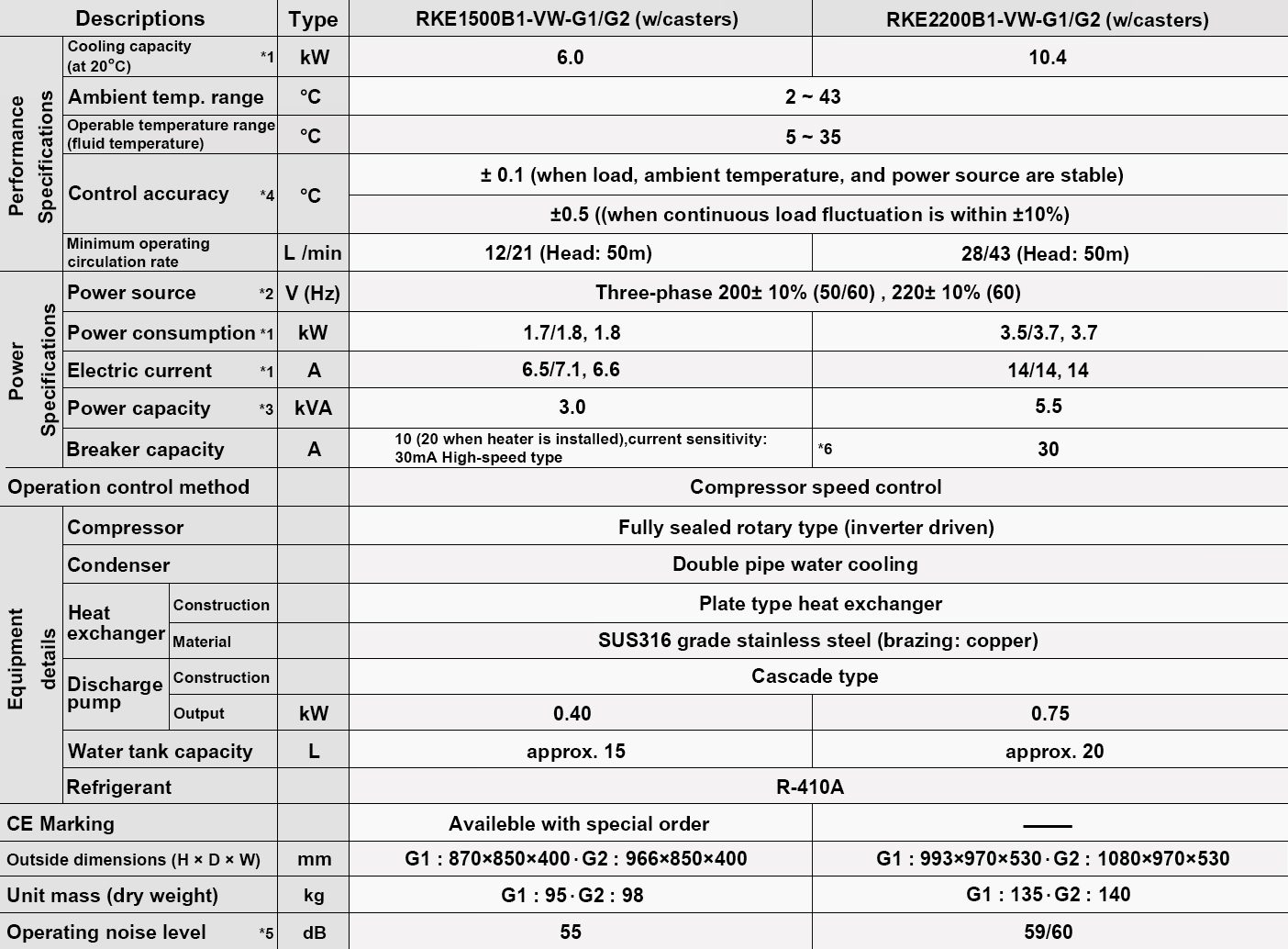

Dc Inverter Chiller-Water Cooled Series

※1 Operation when chilled water temp. is 20℃ and cooling water temp. is 32℃. Cooling capacity is at least 95% of listed figures.

※2 Source voltage phase unbalance should be less than ±3%

※3 The figure noted is when the equipment is operating at the highest capacity of its normal operating range.

※4 Except when the cooling load is too small, in which case the compressor may cycle on and off

※5 Operating noise levels are from a position of 1m in front of the unit and at a height of 1m

※6 Unit comes with a built-in multi-purpose overload and short circuit protection.

Note 1: The cooling fluid can be either tap water or a low concentration ethylene glycol water solution of 10% or less.
