ORION Heavy Duty Inverter Chiller

Built-in

Water Tank

Energy-Saving Chiller

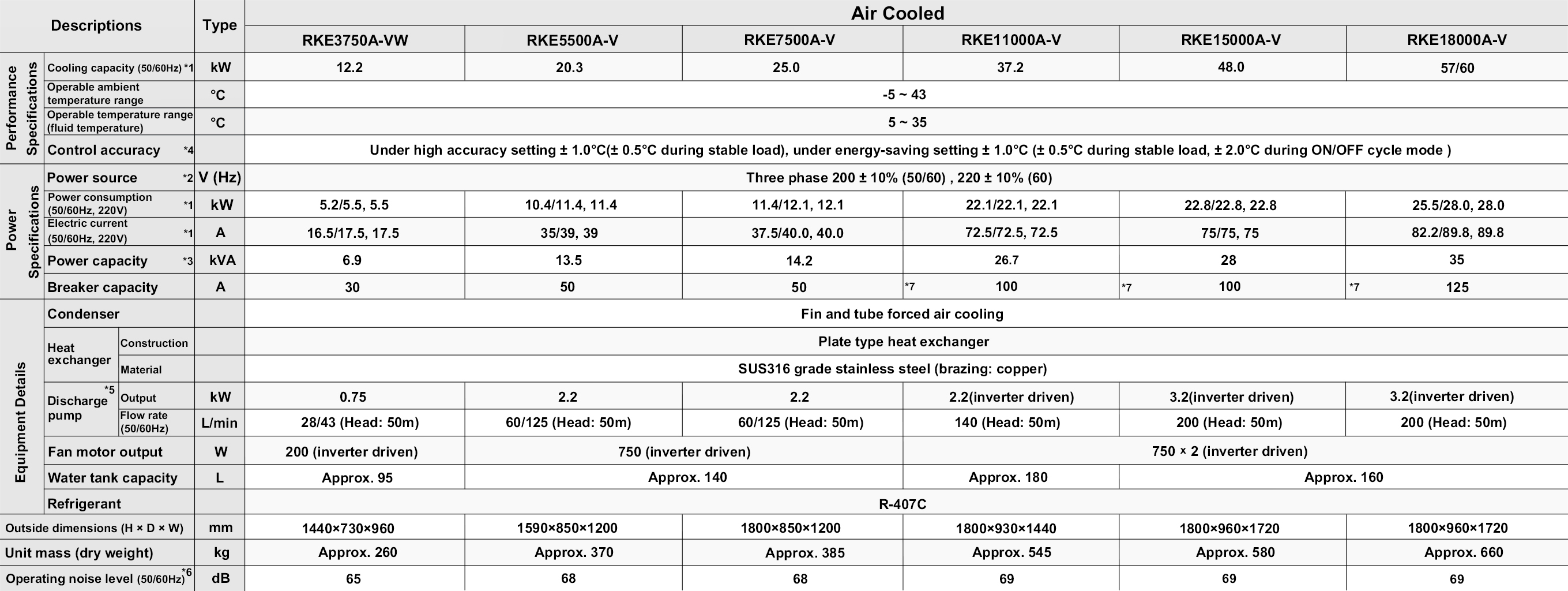

Heavy Duty Inverter Chiller Air Cooled Series

※1 During operation when the fluid temperature is 20℃ and the ambient temperature is 32℃  Cooling capacity will be at least 95% of the noted figures.

※2 Source voltage phase unbalance should be less than ± 3%

※3 The figure noted is when the equipment is operating at the highest capacity of its normal operating range.

※4 Stable load indicates continued operation with maximum load fluctuations of ± 10% of the current load.

※5 Please operate with a head of 50m or less.

※6 Operating noise levels are from a position of 1m in front of the unit and at a height of 1m

※7 Unit comes with a built-in multi-purpose overload and short circuit protection breaker.

Note 1: Please install the included strainer (40 mesh) to the fluid intake port.

Note 2: The chilled fluid can be either potable water or a low concentration ethylene glycol water solution of 10% or less.

Note 3: Heat output of the equipment (in kW) is about 1.3 times the cooling capacity.

Note 4: RKE15000A-V and RKE18000A-V models are built to order items.

Built-in

Water Tank

Energy-Saving Chiller

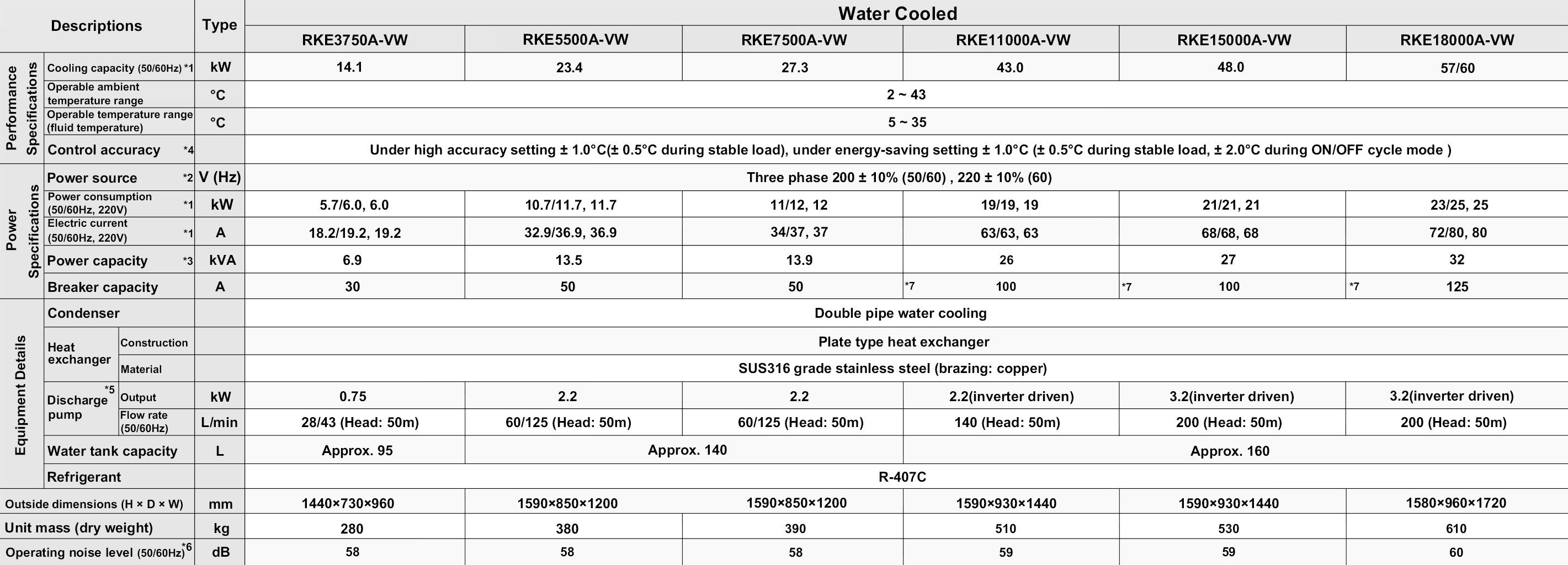

Heavy Duty Inverter Chiller Water Cooled Series

1 During operation when fluid temperature is 20℃ and cooling water temperature is 32℃ . Cooling capacity is at least 95% of listed figures.

※2 Source voltage phase unbalance should be less than ± 3%

※3 The figure noted is when the equipment is operating at the highest capacity of its normal operating range.

※4 Stable load indicates continued operation with maximum load fluctuations of ± 10% of the current load. (However, this is excluding loads in the 25% to 40% range.) Setting can be changed by adjusting parameter F15. (Default setting is the high-accuracy setting)

※5 Please operate with a head of 50m or less.

※6 Operating noise levels are from a position of 1m in front of the unit and at a height of 1m

※7 Unit comes with a built-in multi-purpose overload and short circuit protection breaker.

Note 1: Please install the included strainer (40 mesh) to the fluid intake port.

Note 2: The chilled fluid can be either potable water or a low concentrationethylene glycol water solution of 10% or less.

Note 3: RKE15000A-VW and RKE18000A-VW models are built to order items
